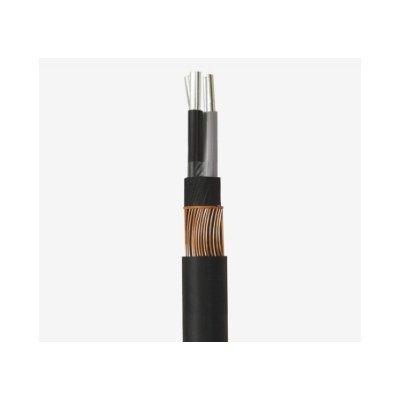

Tratos SNE – SPLIT CONCENTRIC – LSOH SHEATH

• Make: Tratos
• Model code: SNE – SPLIT CONCENTRIC – LSOH SHEATH
• Rated Voltage: Uo/U 0.6/1kv
• Insulation material: XLPE Type DIX 3
• Color: Orange (other colours can be supplied on request). Core Colours 1 core – Brown. 3 core – Brown, Black, Grey.

LV polymeric insulated cables for use by distribution and generation utilities having low emission of smoke and corrosive gases when affected by the fire. Specification for SNE service cable with LSOH sheath to BS 7870 3.22. Conductor – solid round aluminium (Class 1) or stranded plain copper (class 2). Insulation phase conductors – XLPE Type DIX 3 conforming to the requirements given in BS 7870-1 annexe B. Concentric conductor (applied in a right-hand lay)– plain annealed copper earth wires and blue polymeric insulated plain copper neutral wires separated by non-hygroscopic separators. Oversheath –LSOH Type DMZ 4 conforming to the requirements given in BS 7870-1 annexe B. Colour – Orange (other colours can be supplied on request). Core Colours 1 core – Brown. 3 core – Brown, Black, Grey. Voltage rating Uo/U 0.6/1kv. These cables are designed for a maximum continuous conductor temperature of 90 deg c and a maximum short circuit temperature of 250 deg c. Standard sizes available (other sizes available on request), Aluminium conductors. 25mm single and 3 core. 35mm single and 3 core. Copper conductors. 4mm single core. 25mm single and 3 core. 35mm 3 core.
