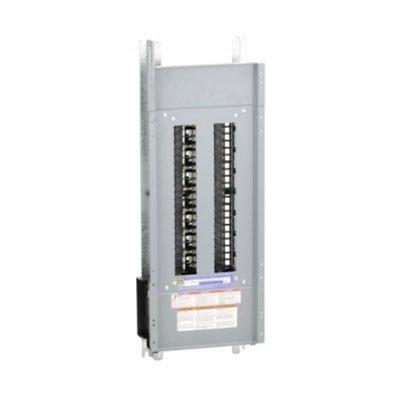

Schneider ElectricNQ442L2 main lugs, 225A, 42 pole spaces, 3 phase, 4 wire, 240VAC

Technical Specification

Features:

Make: Schneider Electric
Model code: NQ442L2
Series: NQ Series
Type: Main lugs
Number of Phases: 3-phase

Additional info:

Interior for NQ Panelboards 3 phase system with 42 pole spaces 225A main lugs with copper bus Voltage ratings of 240VAC and 48VDC Interiors are field convertible to top or bottom feed

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Transmission and Distribution>Panelboards
Model code	NQ442L2
Series	NQ Series
Type	Main lugs
Number of Phases	3-phase
Max. Voltage	240 V AC, 48 V DC
No. of spaces	42
Max. Current	225 A
Wiring configuration	4-wire
Busbar Material	Aluminium
Width	10.44
Height	33
Standards	CSA, UL
Additional info	Interior for NQ Panelboards 3 phase system with 42 pole spaces 225A main lugs with copper bus Voltage ratings of 240VAC and 48VDC Interiors are field convertible to top or bottom feed
