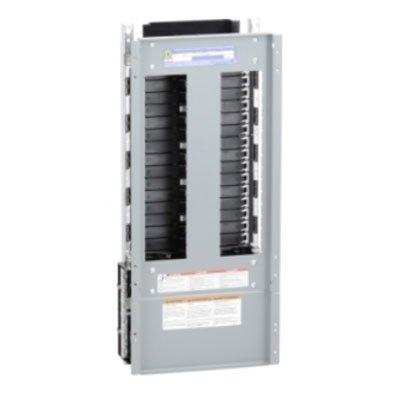

Schneider Electric NF442L1C NF Panelboard

Technical Specification

Features:

Make: Schneider Electric
Model code: NF442L1C
Type: Main lugs
Application: Industrial, Commercial
Number of Phases: 3-phase

Additional info:

UL Listed to 800 A at 480Y/277Vac (cUL rated to 600Y/347 Vac) Fully rated to 65 kA SCCR @ 480Y/277 Volts (Series rated to 200 kA) 15 – 125 Amp HACR rated bolt-on branch circuit breakers with VISI-TRIP® indication (HID rated up to 50A; 1φ SWD rated to 20A) NEMA Type 1, 2, 3R, 4, 4X, 5, and 12 enclosures Interiors are field convertible to top or bottom feed Aluminum or Copper bus Suitable for use as service equipment Field installable main breaker accessories: undervoltage release, alarm switch, and auxiliary contacts Modular construction to accept field installable accessories and conversion kits: sub-feed lugs, thru-feed lugs, and sub-feed circuit breakers main circuit breakers and kits up to 600A 200% rated neutrals for non-linear loads Rail and dead front extension kits provide space for future addition of ready-to-install kits (extensions of 6", 12", 18”, and 24” available) Copper and aluminum, mechanical and crimp lugs

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Transmission and Distribution>Panelboards
Model code	NF442L1C
Type	Main lugs
Application	Industrial, Commercial
Number of Phases	3-phase
No. of spaces	42
Max. Current	125 A
Wiring configuration	4-wire
Busbar Material	Copper
Standards	CSA C22.2, UL 67
Additional info	UL Listed to 800 A at 480Y/277Vac (cUL rated to 600Y/347 Vac) Fully rated to 65 kA SCCR @ 480Y/277 Volts (Series rated to 200 kA) 15 – 125 Amp HACR rated bolt-on branch circuit breakers with VISI-TRIP® indication (HID rated up to 50A; 1φ SWD rated to 20A) NEMA Type 1, 2, 3R, 4, 4X, 5, and 12 enclosures Interiors are field convertible to top or bottom feed Aluminum or Copper bus Suitable for use as service equipment Field installable main breaker accessories: undervoltage release, alarm switch, and auxiliary contacts Modular construction to accept field installable accessories and conversion kits: sub-feed lugs, thru-feed lugs, and sub-feed circuit breakers main circuit breakers and kits up to 600A 200% rated neutrals for non-linear loads Rail and dead front extension kits provide space for future addition of ready-to-install kits (extensions of 6", 12", 18”, and 24” available) Copper and aluminum, mechanical and crimp lugs
