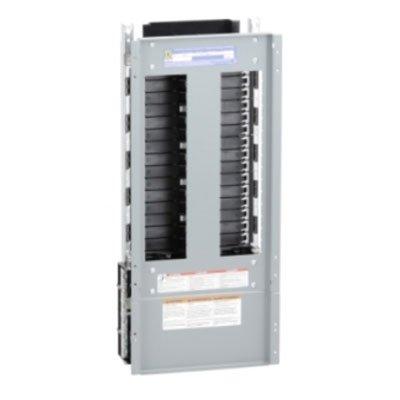

Schneider Electric NF430L1 NF Panelboard

Technical Specification

Features:

Make: Schneider Electric
Model code: NF430L1
Power output: 5 HP
Frame: 215TC
No. of Phases: 3

Additional info:

UL Listed to 800 A at 480Y/277Vac (cUL rated to 600Y/347 Vac) Fully rated to 65 kA SCCR @ 480Y/277 Volts (Series rated to 200 kA) 15 – 125 Amp HACR rated bolt-on branch circuit breakers with VISI-TRIP® indication (HID rated up to 50A; 1φ SWD rated to 20A) NEMA Type 1, 2, 3R, 4, 4X, 5, and 12 enclosures Interiors are field convertible to top or bottom feed Aluminum or Copper bus Suitable for use as service equipment Field installable main breaker accessories: undervoltage release, alarm switch, and auxiliary contacts Modular construction to accept field installable accessories and conversion kits: sub-feed lugs, thru-feed lugs, and sub-feed circuit breakers main circuit breakers and kits up to 600A 200% rated neutrals for non-linear loads Rail and dead front extension kits provide space for future addition of ready-to-install kits (extensions of 6", 12", 18”, and 24” available) Copper and aluminum, mechanical and crimp lugs

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Transmission and Distribution>Panelboards
Model code	NF430L1
Power output	5 HP
Frame	215TC
No. of Phases	3
Speed	1165 RPM
Frequency	60 Hz
Voltage	230/460 V
Construction	Steel
Enclosure	TEFC - Totally Enclosed Fan-cooled
Operating Temperature	40 °C
Standard	NEMA
Mount	F1
Additional info	UL Listed to 800 A at 480Y/277Vac (cUL rated to 600Y/347 Vac) Fully rated to 65 kA SCCR @ 480Y/277 Volts (Series rated to 200 kA) 15 – 125 Amp HACR rated bolt-on branch circuit breakers with VISI-TRIP® indication (HID rated up to 50A; 1φ SWD rated to 20A) NEMA Type 1, 2, 3R, 4, 4X, 5, and 12 enclosures Interiors are field convertible to top or bottom feed Aluminum or Copper bus Suitable for use as service equipment Field installable main breaker accessories: undervoltage release, alarm switch, and auxiliary contacts Modular construction to accept field installable accessories and conversion kits: sub-feed lugs, thru-feed lugs, and sub-feed circuit breakers main circuit breakers and kits up to 600A 200% rated neutrals for non-linear loads Rail and dead front extension kits provide space for future addition of ready-to-install kits (extensions of 6", 12", 18”, and 24” available) Copper and aluminum, mechanical and crimp lugs
