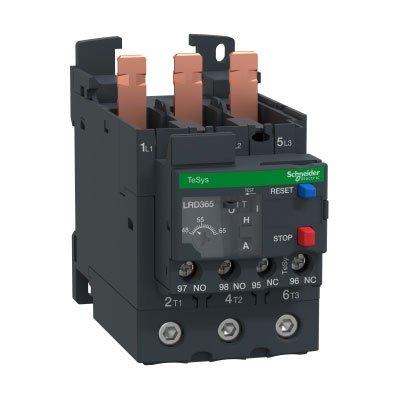

Schneider Electric LR3D365 Thermal Overload Relay

Technical Specification

Features:

Make: Schneider Electric
Model code: LR3D365
Series: TeSys Deca Thermal overload relays
Relay Type: Thermal Overload relay
Rated Voltage: 690 V AC

Additional info:

The non differential thermal overload relay is designed to protect a.c. circuits and motors against overloads The overload relay has an adjustable trip current rating of 48 to 65 amperes Tripping Class 10A Provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach)

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Motors and Electrical Equipment>Relays
Model code	LR3D365
Series	TeSys Deca Thermal overload relays
Relay Type	Thermal Overload relay
Rated Voltage	690 V AC
Rated Current	48 ~ 65 A
Mount	Direct
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1
Operating temperature	-20 ~ 60 °C
Height	70 mm
Width	55 mm
Depth	123 mm
Additional info	The non differential thermal overload relay is designed to protect a.c. circuits and motors against overloads The overload relay has an adjustable trip current rating of 48 to 65 amperes Tripping Class 10A Provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach)
