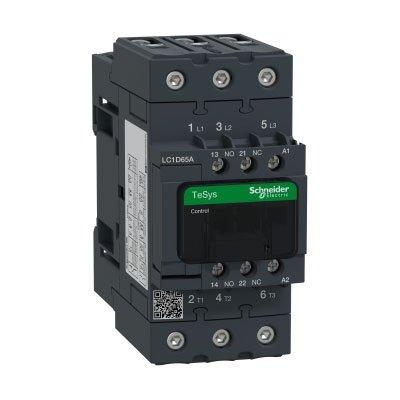

Schneider Electric LC1D65AG7 Non-Reversing 3 Pole 65 A Contactor

Technical Specification

Features:

Make: Schneider Electric
Model code: LC1D65AG7
Series: TeSys Deca Contactors
No. of Poles: 3
Rated Voltage: 690 V AC

Additional info:

The 65 A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel The contactor is rated for 20 HP at 200-208 VAC, 20 HP at 240 VAC, 40 HP at 480 VAC and 50 HP at 600 VAC three phase It is also rated for 5 HP at 115 VAC and 10 HP at 240 VAC single phase It is supplied with a 120 VAC 60 Hz coil Contactor has one normally open and one normally closed auxiliary contact built-in as standard Has both Horsepower and Kw motor rating for international acceptance Certified to UL, CSA, IEC, CCC, EAC and Marine standards Also meets the requirements of RoHS/REACh making it a Green Premium product

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Motors and Electrical Equipment>Contactors
Model code	LC1D65AG7
Series	TeSys Deca Contactors
No. of Poles	3
Rated Voltage	690 V AC
Power rating	40 HP
No. of Phases	3
Rated Current	65 A
Enclosure	Open
Standards	UL, CSA, IEC, CCC, and Marine standards
Protection	IP20
Height	122 mm
Width	55 mm
Depth	120 mm
Additional info	The 65 A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel The contactor is rated for 20 HP at 200-208 VAC, 20 HP at 240 VAC, 40 HP at 480 VAC and 50 HP at 600 VAC three phase It is also rated for 5 HP at 115 VAC and 10 HP at 240 VAC single phase It is supplied with a 120 VAC 60 Hz coil Contactor has one normally open and one normally closed auxiliary contact built-in as standard Has both Horsepower and Kw motor rating for international acceptance Certified to UL, CSA, IEC, CCC, EAC and Marine standards Also meets the requirements of RoHS/REACh making it a Green Premium product
