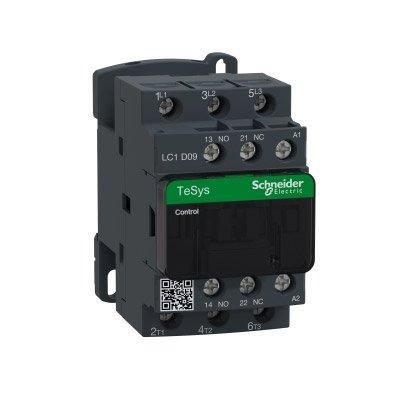

Schneider Electric LC1D09P7 Non-Reversing 3 Pole 9 A Contactor

Technical Specification

Features:
  • Make: Schneider Electric
  • Model code: LC1D09P7
  • Series: TeSys Deca Contactors
  • No. of Poles: 3
  • Rated Voltage: 690 V AC
Read more
Additional info:

The 9 A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel The contactor is rated for 20 HP at 200-208 VAC, 25 HP at 240 VAC, 60 HP at 480 VAC and 60 HP at 600 VAC three phase It is also rated for 7.5 HP at 115 VAC and 15 HP at 240 VAC single phase It is supplied with a 230 VAC 50/60 Hz coil Contactor has one normally open and one normally closed auxiliary contact built-in as standard Certified to UL, CSA, IEC, CCC, EAC and Marine standards Also meets the requirements of RoHS/REACh making it a Green Premium product

Read more
Make Schneider Electric
Manufacturer Schneider Electric
Category Motors and Electrical Equipment>Contactors
Model code LC1D09P7
Series TeSys Deca Contactors
No. of Poles 3
Rated Voltage 690 V AC
Power rating 5 HP
No. of Phases 1, 3
Rated Current 9 A
Enclosure Open
Standards UL, CSA, IEC, CCC, EAC and Marine standards
Protection IP20
Width 45 mm
Depth 86 mm
Height 77 mm
Additional info
  • The 9 A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel
  • The contactor is rated for 20 HP at 200-208 VAC, 25 HP at 240 VAC, 60 HP at 480 VAC and 60 HP at 600 VAC three phase
  • It is also rated for 7.5 HP at 115 VAC and 15 HP at 240 VAC single phase
  • It is supplied with a 230 VAC 50/60 Hz coil
  • Contactor has one normally open and one normally closed auxiliary contact built-in as standard
  • Certified to UL, CSA, IEC, CCC, EAC and Marine standards
  • Also meets the requirements of RoHS/REACh making it a Green Premium product
