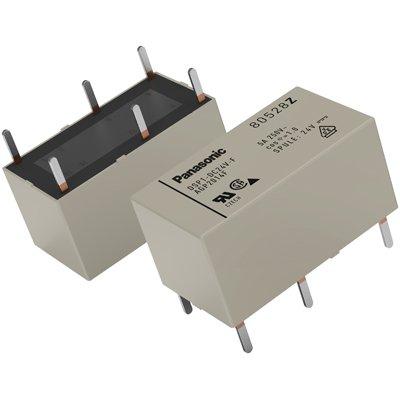

Panasonic DSP1-L-DC3V-F DS-P Series Polarized Power Relay (1 coil latching)
Technical Specification
Features:
- Make: Panasonic
- Model code: DSP1-L-DC3V-F
- Relay Type: Polarized Power Relay
- Rated Voltage: 3 V DC
- Contact Form: 1 Form A / 1 Form B
Additional info:
High Switching Capability: 1a, 8 A 250 V AC; 2a and 1a1b, 5 A 250 V AC High Sensitivity and Breakdown Voltage Sealed Construction Allows Automatic Washing UL, CSA, and TÜV Compliant Latching Types and Sockets Available PC Board Sockets Available For Easy Replacement of Relay For Simple Maintenance
Read moreMake | Panasonic |
---|---|
Manufacturer | Panasonic Corporation of North America |
Category | Motors and Electrical Equipment>Relays |
Model code | DSP1-L-DC3V-F |
Relay Type | Polarized Power Relay |
Rated Voltage | 3 V DC |
Contact Form | 1 Form A / 1 Form B |
Standards | UL, CSA, and TÜV Compliant |
Operating temperature | -40 ~ +60 °C |
Width | 11 mm |
Length | 20.2 mm |
Height | 10.5 mm |
Additional info |
|
