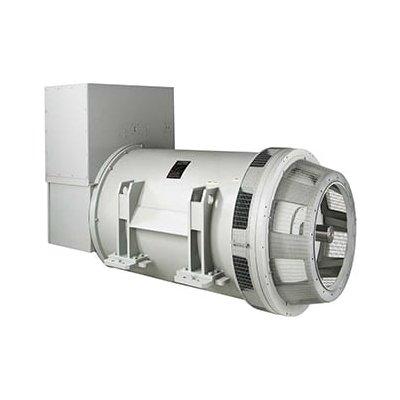

Marathon Electric Generators 1020FDL1102 4-Pole Three Phase 60 Hertz Generators

Technical Specification

Features:

Make: Marathon Electric Generators
Model code: 1020FDL1102
Series: MagnaPower Generators®
Application: Reciprocating and Turbine prime movers, Distributed Power Generation, Utility Applications, Heavy Industry Power, Oil and Gas Industry, Cogeneration
Voltage: 480Y

Additional info:

Marathon Generator’s MAGNAPOWER generator line delivers powerful performance and reliable power generation. Its patented Digital Voltage Regulator (DVR) and grid code compliance make it the optimal choice for the most demanding prime power applications. MagnaPower is manufactured for maximum durability. Its steel plate construction, internal frame supports and a rigidly controlled welding process assure low vibration and extended life.To ensure high mechanical and electrical integrity, the entire stator assembly is vacuum pressure impregnated with anhydride epoxy resin and coated with a tropical insulation for added environmental protection.MagnaPower’s exciter comes standard with surge protectors, as well as rotating rectifiers rated for 1000 volts.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Marathon Electric Generators
Manufacturer	Regal Rexnord Corporation
Category	Transmission and Distribution>Generators
Model code	1020FDL1102
Series	MagnaPower Generators®
Application	Reciprocating and Turbine prime movers, Distributed Power Generation, Utility Applications, Heavy Industry Power, Oil and Gas Industry, Cogeneration
Voltage	480Y
No. of Phases	3
Power factor	0.8
Insulation class	NEMA®* Class H
Additional info	Marathon Generator’s MAGNAPOWER generator line delivers powerful performance and reliable power generation. Its patented Digital Voltage Regulator (DVR) and grid code compliance make it the optimal choice for the most demanding prime power applications. MagnaPower is manufactured for maximum durability. Its steel plate construction, internal frame supports and a rigidly controlled welding process assure low vibration and extended life. To ensure high mechanical and electrical integrity, the entire stator assembly is vacuum pressure impregnated with anhydride epoxy resin and coated with a tropical insulation for added environmental protection. MagnaPower’s exciter comes standard with surge protectors, as well as rotating rectifiers rated for 1000 volts.
