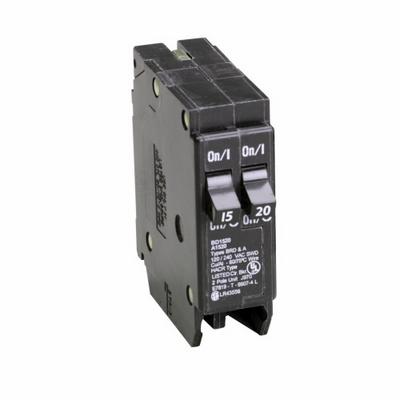

Eaton BD1520 BR Circuit Breakers

Technical Specification

Features:

Make: Eaton
Model code: BD1520
Interrupt rating: 10 kAIC
No. of Poles: Single-pole
Current rating: (1) 15A, (1) 20 A

Additional info:

Eaton BR thermal magnetic circuit breaker,Type BD 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,15-20 A,10 kAIC,Single-pole,120V,BD,#14-4 AWG Cu/Al,BD,Type BR Loadcenters

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Eaton
Manufacturer	Eaton
Category	Wires, Cables, Conduits and Overcurrent Protection>Circuit Breakers and Fuses
Model code	BD1520
Interrupt rating	10 kAIC
No. of Poles	Single-pole
Current rating	(1) 15A, (1) 20 A
Mount	Plug-on
Voltage	120 V
Height	2.6 in
Width	1 in
Length	2.9 in
Standards	UL 489
Additional info	Eaton BR thermal magnetic circuit breaker,Type BD 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,15-20 A,10 kAIC,Single-pole,120V,BD,#14-4 AWG Cu/Al,BD,Type BR Loadcenters
