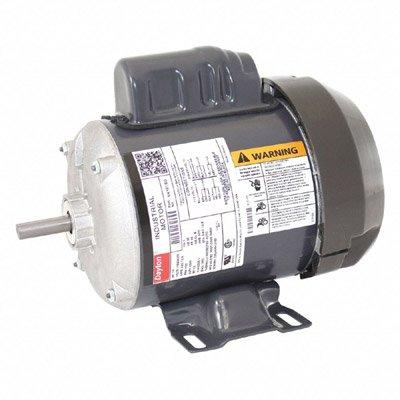

Dayton 5K191BG Totally Enclosed Fan-Cooled Rigid Base Mount General Purpose Motor

Technical Specification

Features:

Make: Dayton
Model code: 5K191BG
Power output: 1/4 HP
Frame: 48
No. of Phases: 1

Additional info:

NEMA 48 frame capacitor-start general purpose AC motor has a standard 1/2" diameter, 1-1/2" length shaft whose center is 3" above the base mounting surface 1/4 HP, 115/208-230V AC The single-phase motor uses a capacitor to provide additional power during startup for higher torque

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dayton
Manufacturer	Grainger
Category	Motors and Electrical Equipment>Motors
Model code	5K191BG
Power output	1/4 HP
Frame	48
No. of Phases	1
Speed	1725 RPM
Frequency	60 Hz
Voltage	115/208-230 V AC
Enclosure	Totally Enclosed Fan-Cooled
Standard	CSA, UL
Mount	Rigid Base Mount
Additional info	NEMA 48 frame capacitor-start general purpose AC motor has a standard 1/2" diameter, 1-1/2" length shaft whose center is 3" above the base mounting surface 1/4 HP, 115/208-230V AC The single-phase motor uses a capacitor to provide additional power during startup for higher torque
