Siemens is expanding its family of Reyrolle protection devices with the launch of the 7SR46. Complementing an extensive portfolio of protection relays for distribution and industrial grids, the primary application for the Reyrolle 7SR46 is to provide overcurrent and earth fault protection in medium voltage distribution transformer stations.
Mounted in a ring main unit, the protection device detects cable faults on the network and operates quickly to disconnect the fault. The 7SR46 dual-powered protection relay is to be showcased at Enlit Europe, taking place in Frankfurt from November 29 to December 1.
Power from CTs
Due to their remote location, secondary substations do not always have a battery to power electronic equipment such as protection relays. With this in mind, the 7SR46 has been designed to operate using power from current transformers (CTs) when the line is live.
The 7SR46 has been specifically designed to power up quickly to protect in such circumstances
Addressing scenarios whereby the line is switched off and there is already a fault on the line, or the earth connection has been mistakenly left connected, the 7SR46 has been specifically designed to power up quickly to protect in such circumstances.
easy-to-use display
Providing additional flexibility and security, the 7SR46 is dual-powered to allow a connection to an auxiliary battery supply. With power available from the current transformers and an auxiliary power supply, this feature provides redundancy in case the battery fails.

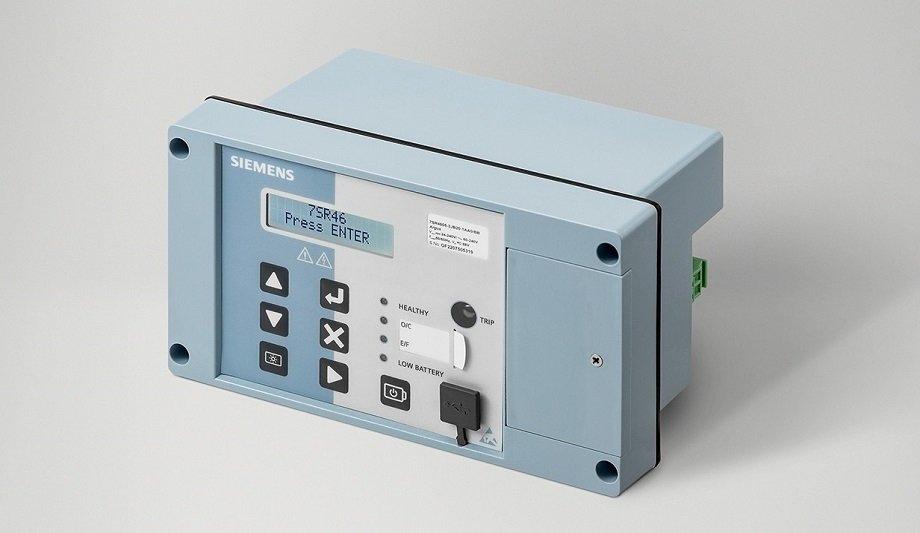

The 7SR46 device has a compact (H104 mm x W185 mm x D79 mm), moulded enclosure. The front of the device includes an easy-to-use display and push buttons that can be used to program the relay and view fault records and instrumentation. Four LEDs provide information on the relay’s status and a mechanical trip flag is also available.
Front features
The front of the device features a USB communication port for connecting to a PC and can power the relay when no other power source is available.
The USB port also allows plug and play connection to Reydisp to program the device and download fault and event information. The integrated battery allows users to program the device and download event and fault records without a connected power supply.
Rear features
The rear of the device features user-friendly detachable terminals for the RS485 communication interface
The rear of the device features user-friendly detachable terminals for the RS485 communication interface (Modbus RTU and IEC 60870-103), auxiliary power supply, binary inputs, binary outputs, external trip initiation input, external flag output, and pulse output.
The CTs (of type 5P80) are connected with a secure ring crimp. A clear connection diagram is also located on the rear of the relay to aid the user.
comprehensive and reliable protection
Adhering to stringent product testing standards, the 7SR46 is perfectly suited for use in distribution transformer stations where there is no circuit breaker trip supply.
The device features a pulse output that can activate a low-power trip coil to trip the circuit breaker. Available at a highly competitive price point, the 7SR46 provides comprehensive and reliable protection for medium-voltage applications.
