3 Aug 2022

RECOM is excited to announce the release of a new range of DC/DC converters for E-mobility applications.

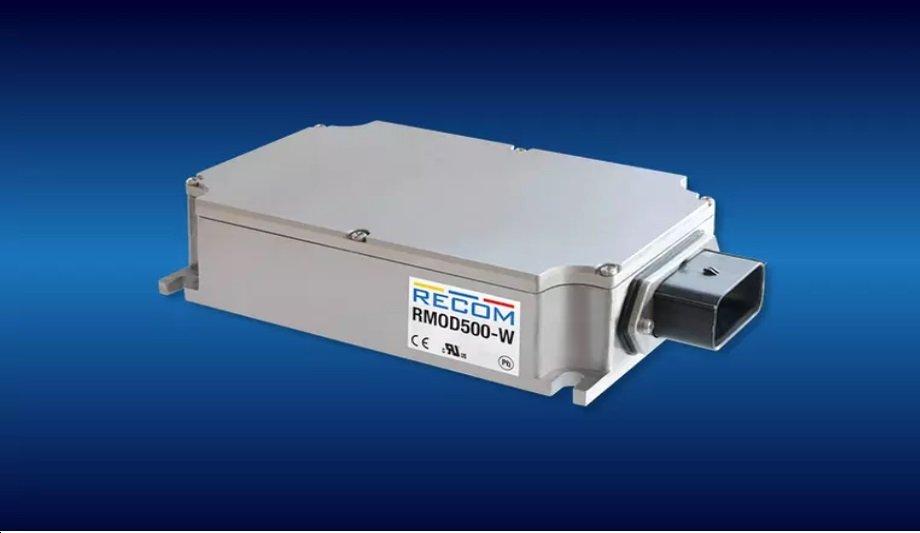

RMOD500-W

With the push for zero-emission transport, electric propulsion is the ideal solution for off-highway vehicles and they invariably require DC/DC converters to generate isolated auxiliary power rails from the traction battery.

The compact and cost-effective RMOD500-W range introduced is perfect for the application as the products are IP67-rated, fully sealed against moisture and dust including connectors, and can therefore be fitted in any unprotected area of the vehicle.

Outputs available

RMOD500-W is rated at 500W with an input range covering 32-96V for nominal 48V, 60V, 72V, and 80V

The RMOD500-W is rated at 500W with an input range covering 32-96V for nominal 48V, 60V, 72V, and 80V batteries.

Outputs available are: 13.7V, 13V, 12.4V, 11.7V, 24.5V, and 23.5V and parallel operation is possible for higher-power applications. Certified isolation is provided, at 2.25kVDC and the ambient operating temperature range is from -40°C to 90°C.

plug-and-play

The RMOD500-W is designed for easy plug-and-play chassis-mounting installation with standard connectors and is sized 198 x 113 x 45mm including connectors. Protection features make the parts rugged in the application and include input reverse polarity and under-voltage, over-temperature, output over-current/short circuit, and output over-voltage.

The range has been qualified to standards for EMC, radiation, shock/vibration, thermal shock/temperature cycling, salt mist, water/dust ingress, and safety.
