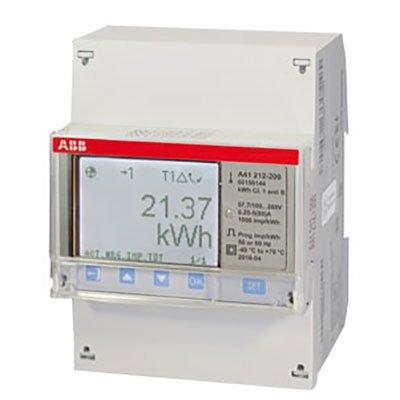

ABB A41 412-600 Advanced DIN-rail meter
Technical Specification
Features:
- Make: ABB
- Model code: A41 412-600
- Type: Electricity meter
- Voltage Range: 57.7-288 V
- Current Range: 80 A
Additional info:
Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID and METAS approved and verified
Read more| Make | ABB |
|---|---|
| Manufacturer | ABB |
| Category | Transmission and Distribution>Electric Meters & Metering Equipment |
| Model code | A41 412-600 |
| Type | Electricity meter |
| Voltage Range | 57.7-288 V |
| Current Range | 80 A |
| Frequency Range | 50/60 Hz |
| Accuracy | Active Energy Class B MID (±1%) |
| Width | 70 mm |
| Length | 65 mm |
| Height | 26.5 mm |
| Weight | 0.236 kg Kg |
| Protection | IP20 |
| Operating temperature | 40 ... 70 °C °C |
| Cover Style | Polycarbonate in terminal cover. |
| Additional info |
|
| Download PDF version Download PDF version | |
