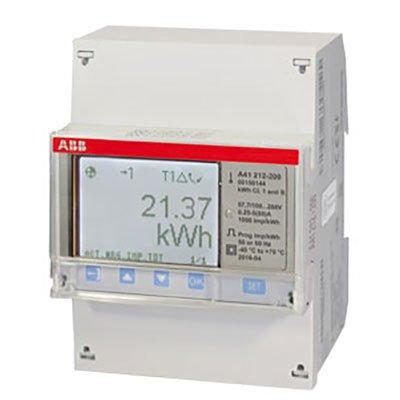

ABB A41 111-200 Advanced DIN-rail meter
Technical Specification
Features:
- Make: ABB
- Model code: A41 111-200
- Type: Electricity meter
- Voltage Range: 57.7-288 V
- Current Range: 80 A
Additional info:
Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active energy. One output for pulses or alarm etc. M-Bus communication. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + EAC approved and verified
Read more| Make | ABB |
|---|---|
| Manufacturer | ABB |
| Category | Transmission and Distribution>Electric Meters & Metering Equipment |
| Model code | A41 111-200 |
| Type | Electricity meter |
| Voltage Range | 57.7-288 V |
| Current Range | 80 A |
| Frequency Range | 50/60 Hz |
| Accuracy | Active Energy Class B MID (±1%) |
| Length | 65 mm |
| Height | 26.5 mm |
| Width | 70 mm |
| Weight | 0.236 kg Kg |
| Protection | IP20 |
| Operating temperature | 40 ... 70 °C °C |
| Standards | IEC 62053-21 |
| Cover Style | Polycarbonate in terminal cover. |
| Additional info |
|
| Download PDF version Download PDF version | |
